Welcome one, welcome all to perhaps the most pointless blog you’ve ever read. Do you really need to know what the blade-tip velocity of the Tesla Cybertruck’s humongous windshield wiper is? No. It’s entirely useless info. And yet, after driving a Cybertruck yesterday and activating those wipers via a steering wheel button, I had to know. I just had to. And because I wasted a couple of minutes on these calculations, I implore you all to waste a couple of minutes reading about my waste of a couple minutes.
Ah the Tesla Cybertruck. It’s a weird machine that you’re all tired of reading about. But I got to drive one for the first time recently (review incoming!) and you know what? It was flawed; deeply, deeply flawed. But also cool. Deeply, deeply cool. It honestly spends far too much time trying to be cool, to the point that some of its features that are billed as “novel” actually just make the truck worse than it needs to be. But more on that later; that’s actually somewhat useful/insightful — this article you’re now reading is nothing of the sort. It’s pointless. It’s about the front wiper.

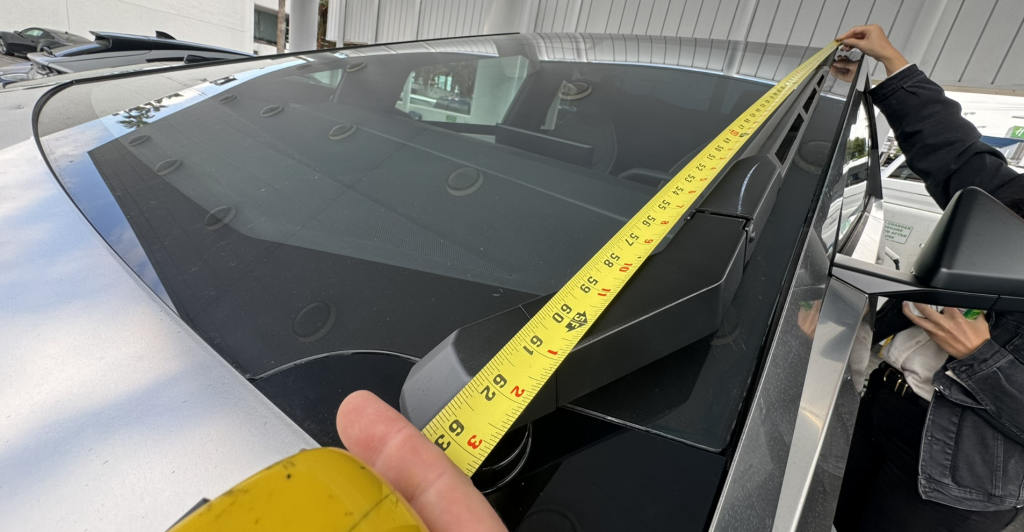

The front wiper on the Tesla Cybertruck is 62 inches long. That’s over five feet.
Over Five Feet. I have friends who are shorter than the Tesla Cybertruck’s windshield wiper.
My mom is shorter than the Tesla Cybertruck’s windshield wiper.
Upon activating the wiper, the first thing I thought was: “Damn, this thing swipes pretty fast. And given how long it is, that probably means it’s got a high blade-tip velocity.” Yes, it’s a curiosity I often have with rotating objects; I recently did a quick calculation of how fast the tips of wind turbines are moving. They appear to be rotating so slowly, but if you count — one Mississippi, two Mississippi — how long it takes for them to make one revolution, and you know the length of a wind turbine (they’re quite long), you realize that the tips of those blades are doing, like, 100 mph. Man I’d hate to get struck by that as a bird; unless I were traveling at 99.5 mph in the same direction, I suppose.
Anyway, let’s bring this back to the Cybertruck.
Since I know the length of the wiper, I have one of the two ingredients I need in the equation:
v = r * omega
In this equation, v is velocity in meters per second (I’ll convert that to MPH for y’all non-Metric folks). That’s what I’m solving for. r is the radius — i.e. the distance from the center of rotation to wherever we want the velocity (in our case, at the very end of the wiper, where velocity is maximized — this distance should be in meters when running this calculation). And omega is the wiper’s angular velocity in radians per second.
So we have r; it’s 62 inches, which is 1.58 meters. Now to get v, we need to find Omega; how do we do that? Well, this wiper is essentially rotating about its pivot point at the bottom of the A-pillar. The wiper is doing an approximately 90-degree sweep, so that’s a quarter of a rotation or — and this is more important — pi/2 radians.
By the way, if you want to convert degrees of rotation into radians, just have a handy dandy unit circle nearby:
I dare not interject some actually useful information into a blog that I promised would be pointless, so I won’t get into unit circles too much, but here are the basics: It’s a circle with a radius of 1 (unitless). You start labeling radians of rotation from the right side of the circle going counterclockwise, with pi/2 radians coming at 90 degrees (where the circle’s Y-coordinate is one and X is zero), pi coming at 180 degrees (-1, 0), 1.5 pi (3pi/2) coming at 270 degrees (0, -1), and 2pi being an entire rotation that brings you back to (1,0).
Just memorize this circle, and you’ll know that to convert from degrees to radians or vice versa, you just have to know that 90 degrees is pi/2 radians. Or 180 degrees is pi radians. Or 270 degrees is 3 pi/2 radians. Or 360 degrees is 2pi radians. It’s just a proportion.
The real utility of the unit circle is related to trigonometry. The unit circle’s coordinates (labeled above) represent the cosine and sine of whatever angle we’re discussing. So if we want to know what the sine of 30 degrees is, we memorize our unit circle and realize that 30 degrees — which is pi/6 — has coordinates (sqrt(3)/2, 1/2). Since the Y-coordinate on the unit circle is the sine coordinate, we know that sin(30)=1/2. That’s some useful stuff, there.
Crap, I just wrote useful stuff in this blog.
Anyway, let’s make up for that by finalizing this whole windshield wiper-tip velocity calculation. I had our video editor, the inimitable Erica Lourd, analyze the frame-rates of my video to see how long it took for the Cybertruck’s wiper to make its full sweep, which I’m estimating is a 90-degree sweep (that seems close). She seemed thrilled by this request:
She found that it took about 20 frames for the wiper to make a 90-degree wipe (she checked both up and down). Since I was shooting at 30 frames per second, this means it took 2/3 of a second for the wiper to do 90 degrees.
So how do I get Omega? Well, first, we’ve established that 90 degrees is pi/2 radians. So we just need the time component, since Omega is in radians per second. So we divid pi/2 by 2/3, and we arrive at: 2.36 radians per second.
So let’s solve v = r*Omega. r is 62 inches in meters, which is 1.57m. Multiply that by 2.36 radians/s and we end up with 3.7 meters per second. That’s equivalent to 8.3 miles per hour.
But I had a concern. If you look at my initial video, that wiper is squeaking quite a bit. It’s clear that it’s not lubricated properly; luckily, I found this great clip by YouTuber Alex On Autos:
He sprayed the Cybertruck’s glass with deionized water, and you can see that thing is moving. He even compared its speed to that of the Ford F-150 Lightning’s, and it appears that they move at roughly the same speed, it’s just that the Tesla pauses for longer.
Anyway, in this 60-frame-per-second video, Erica excitedly determined, the wiper took 28 frames to sweep its approximately 90 degree sweep. So that’s 28/60 seconds, which is .47 seconds. That’s a bit quicker than my video’s 2/3 of a second. So to calculate the blade-tip velocity, we still need Omega, which is pi/2 divided by .47 = 3.34 radians per second. Pop that into v = r * Omega, and we find:
Velocity = 1.57m*3.34 rad/s = 5.24 meters per second. That’s equivalent 11.7 mph.
So that’s how fast a fly sitting at the end of the Cybertruck’s wiper blade would be traveling at max wiping speed. The F-150 Lightning’s wiper blades — which appear to sweep the same angle in the same amount of time — are 22-inches long; add maybe seven inches at most to account for where the part of the wiper arm below where the bottom of the blade wipes, and it’s about half the length of the Cybertruck’s, meaning its “r” is half of the Cybertruck’s, resulting in half the blade-tip velocity — so about 6 mph.
One thing I want to address, since we have so many nerds in the audience: Is the Cybertruck really wiping 90 degrees? That Alex on Autos YouTube video appears to show much less than a 90-degree wipe. I think this is a bit of an illusion, since the wiper arm has a bend in it, and the pivot point isn’t shown (as a result, making one “assume” that the pivot point is farther to the right than it is in reality). In truth, the tip of the wiper is pretty much directly above the wiper’s pivot point when the wipe starts (when viewed head-on), and when the wipe ends, it’s pretty much directly to the left of it (on the same horizontal plane). Maybe the wiper is 85 degrees; that doesn’t change our answer much, bringing it from 11.7 MPH to 11.
So conservatively, to those of you flies planning to take a joy ride at the top of the Tesla Cybertruck’s enormous windshield wiper: Get ready to travel 11MPH. It’s possible you’ll travel even faster towards the middle of the wipe, since it takes time for the blade to accelerate and decelerate, and I just used an average angular velocity for these calculations.
Now, if the vehicle is moving forward at 30 MPH, how quickly will the fly be moving at different points in the wipe, since the vehicle’s velocity will be additive to the wiper tip’s velocity? That’s maybe an article for another time.
